Vrste glavčina točka
Nosivost osovine do 750kg
kliknite na slike za veći prikaz
| Tip | Nagib (mm) | Broj crteža |
|---|---|---|

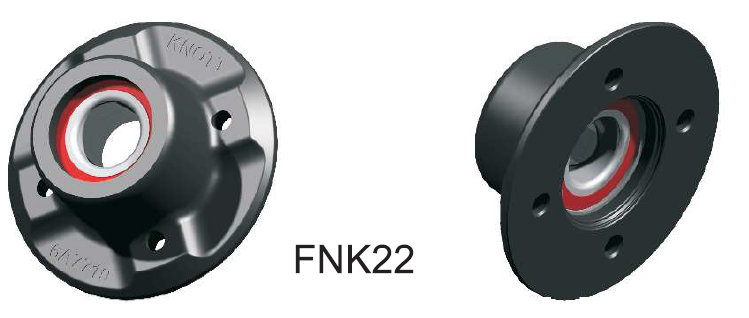

| FNK22 | 0-45 | 6A7741 |

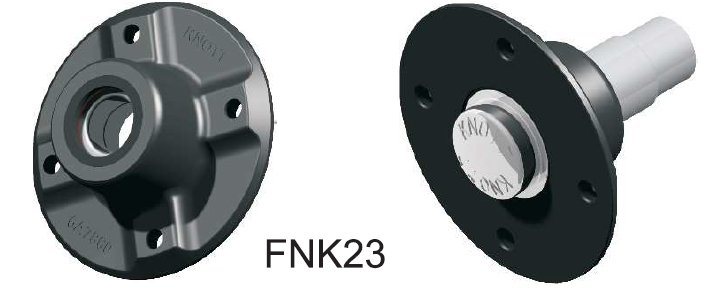

| FNK23 | 0-45 | 6A7861 |
Nosivost osovine do 1350kg
kliknite na slike za veći prikaz
| Tip | Nagib (mm) | Broj crteža |
|---|---|---|

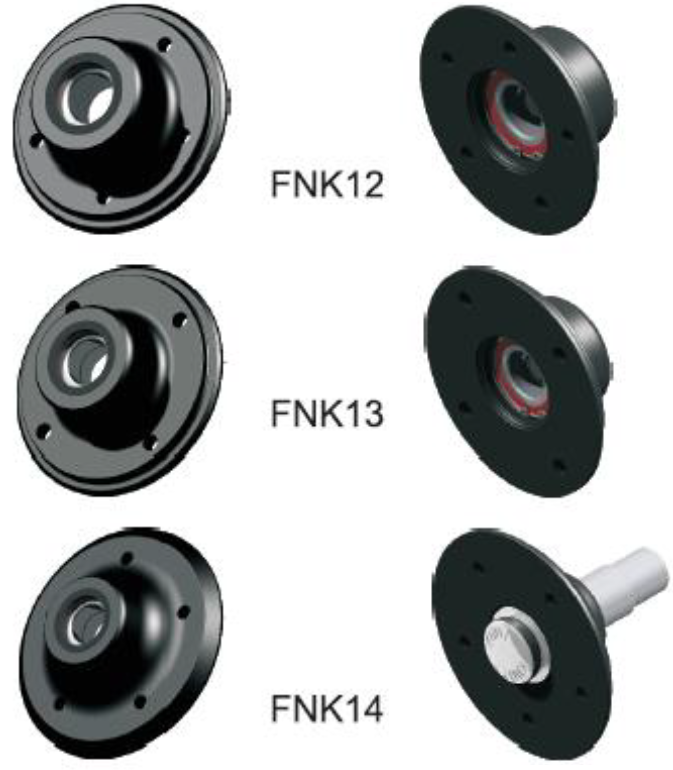

| FNK12 | 25-35 | 6B1302 |
| FNK13 | 25-35 | 6B1303 |
| FNK14 | 25-35 | 6B1383 |
Nosivost osovine do 1800kg
kliknite na slike za veći prikaz
| Tip | Nagib (mm) | Broj crteža |
|---|---|---|

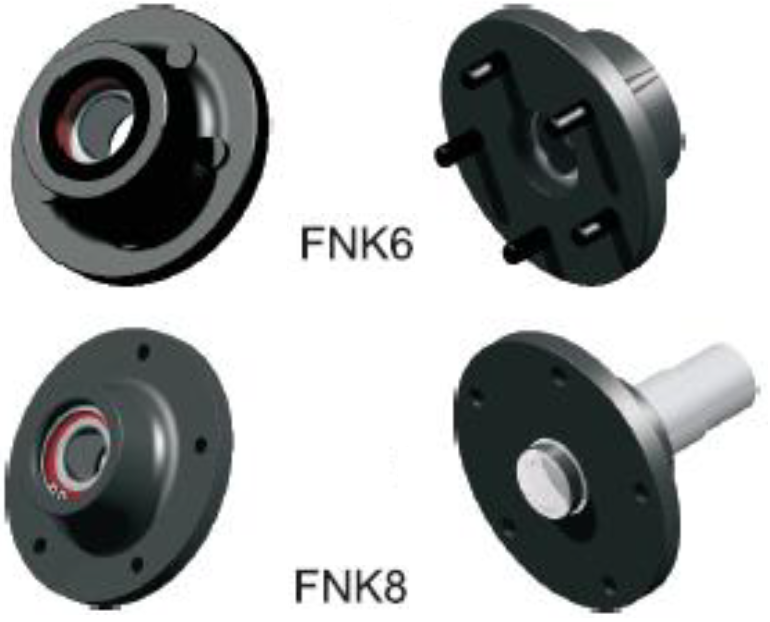

| FNK6 | do 1500kg 0-35 preko1500kg 25-35 | 6B0724 |
| FNK6W | do 1500kg 0-35 preko1500kg 25-35 | - |
| FNK8 | do 1500kg 0-35 preko1500kg 25-35 | 6B0800 |
| FNK8W | do 1500kg 0-35 preko1500kg 25-35 | - |
| Veza sa točkom | Glavčina |
|---|---|
| 98x4 | FNK22, FNK23 |
| 100x4 | FNK22, FNK12, FNK13 |
| 100x5 | FNK23, FNK12 |
| 108x4 | FNK22, FNK12, FNK13 |
| 110x4 | FNK23, FNK12, FNK6 |
| 110x5 | FNK12, FNK6 |
| 112x5 | FNK12, FNK13, FNK6 |
| 112x3 | FNK12, FNK13, FNK6 |
| 114,3x5 | FNK12, FNK13, FNK6 |
| 115x4 | FNK23, FNK13, FNK6 |
| 120x5 | FNK13, FNK8 |
| 120x6 | FNK13, FNK8 |
| 130x4 | FNK23, FNK13, FNK14, FNK8 |
| 130x5x | FNK13, FNK14, FNK8 |
| 130x6 | FNK13, FNK14, FNK8 |
| 139,7x4x | FNK23, FNK13, FNK14, FNK8 |
| 139,7x5 | FNK13, FNK14, FNK8 |
| 139,7x6 | FNK13, FNK14, FNK8 |
| 140x5 | FNK13, FNK14, FNK8 |
| 140x6 | FNK13, FNK14, FNK8 |
| 150x3 | FNK14, FNK8 |
| 150x5 | FNK14, FNK8 |
| 152,4x5 | FNK14, FNK8 |
| 160x5 | FNK14, FNK8 |
| 165,1x5 | FNK14, FNK8 |
| 170x5 | FNK14, FNK8 |
